CAD Prosthetic Fabrication

The following pages contain images of various socket shapes and designs that we can produce for your patient from measurements.

Please be aware that we can also image any socket shape that you may prefer and library it for your own use. We can then provide that shape for you using the measurements you provide.

We also have the capacity to modify the mold from measurement to correct any particular problems your patient may have. Additional relief on the lateral distal end can be provided, or hugging in the lateral wall. We can even accommodate flexion and abduction problems.

All we need from you is a completed form that describes, in detail, what you would like.

Please feel free to call us to discuss these and other central fabrication services that we can support you and your patient with.

Socket Shapes Available

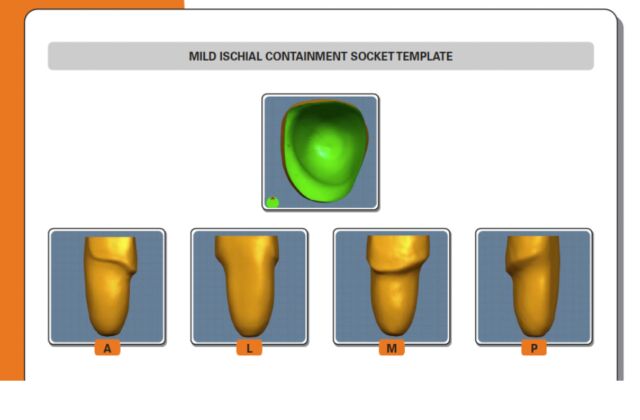

1) GFH MILD IC

2) GFH MODERATE IC

3) GFH AGGRESSIVE IC

4) GFH CAT-CAM DESIGN

5) TRACER CAT-CAM DESIGN

6) SOFT NARROW M-L

7) NARROW M-L ONE

8) NARROW M-L TWO

9) NARROW M-L THREE

10) NARROW M-L FOUR

11) NARROW M-L FIVE

12) SOFT QUAD DESIGN

13) QUAD ONE

14) QUAD TWO

15) QUAD THREE

16) QUAD FOUR
