Prefabricated SpinaLoc® X Series Specifications & Size Chart
Our SpinaLoc® X Series Spinal Orthoses feature comfort, stability and a variety of options. Below are each model specifications and size chart.
These (OTS) Off-The-Shelf (Soft) braces are sized to fit based on standard body proportions for both male and female patients.

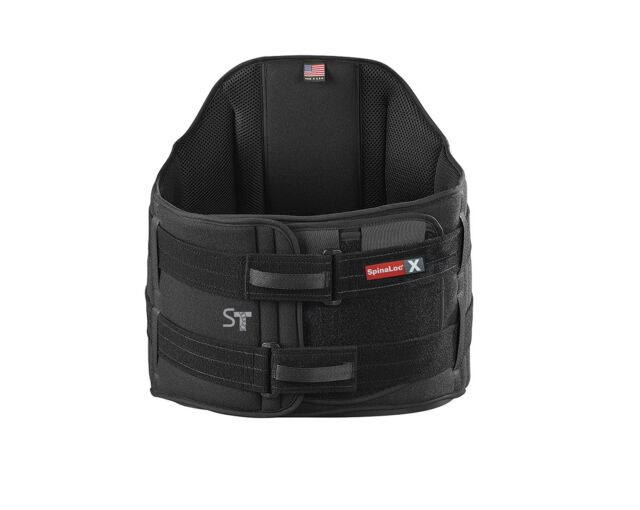

Model X1
LSO
9” Front and 14” Back
with lateral panels
PDAC Approved
L0637 or L0650
Model X2
LSO
7” Front and 14” Back
with lateral panels
PDAC Approved
L0637 or L0650
Model X3
LSO
7” Front and 12” Back
with NO lateral panels
PDAC Approved
L0627 or L0642
Model X6
TLSO
9” Front and 18” Back
with lateral panels
PDAC Approved
L0456 or L0457
Model X7
TLSO
7” Front and 18” Back
with lateral panels
PDAC Approved
L0456 or L0457
Model X8
TLSO
7” Front 18” Back with ATE
and lateral panels
PDAC Approved
L0456 or L0457
Model X9
LSO
9” Front and 14” Back
with NO lateral panels
2 Piece Design
PDAC Approved
L0631 or L0648
Model X10
LSO
7” Front and 14” Back
with NO lateral panels
2 Piece Design
PDAC Approved
L0631 or L0648
The SpinaLoc XT Orthosis
Features a single piece design elastic back support with both anterior and posterior thermo-formable plastic inserts. It has a top tension strap for additional pressure application.
Made with Latex-free elastic. Pre-molded Kydex padded inserts are included.
XT Model
LSO
3 Back Heights Available
XT8 - 8” back height
tapered to a 4” front
XT10 - 10” back height
tapered to a 6” front
XT12 - 12” back height
tapered to a 6” front
PDAC Approved
L0627 or L0642
Size Chart
SpinaLoc X Models
X1, X2, X3, X6, X7, X8, X9, X10
| Size | Hips |
|---|---|
| Small | 32”- 38” |
| Medium | 36”- 42” |
| Large | 40”- 46” |
| X-Large | 44”- 50” |
| 2X-Large | 48”- 54” |
| 3X-Large | 52”- 58” |
| 4X-Large | 56”- 62” |
SpinaLoc XT Model
| Size | Hips |
|---|---|
| Ex-Small | 25”- 29” |
| Small | 29”- 33” |
| Medium | 33”- 37” |
| Large | 37”- 41” |
| X-Large | 41”- 45” |
| 2X-Large | 45”- 49” |
| 3X-Large | 49”- 53” |
| 4X-Large | 53”- 57” |
| 5X-Large | 57”- 61” |
