Overview

The SCT 3D Wilmington (style) brace is a custom TLSO that is designed using CAD/CAM technology. This orthosis provides a brace design that corrects the spine based on three body planes, the Sagittal, Coronal and Transverse (SCT) and provides a precise combination of lateral and rotational forces that move the spine into a corrected position. This orthosis provides passive correction of scoliosis curve with apices at or below T7.

This brace design maintains corrective forces at the curve apices, the iliac crests, greater trochanters, and symphysis pubis. Using CAD/CAM technology allows for precise fabrication to maximize spinal correction that can be measured to the exact millimeter.

Spinal Indications

  • Lumbar Curves
  • Thoracic Curves
  • Double Major Curves
  • Thoracolumbar Curves

Features

  • Provides the ability to control the angles of the sagittal plane regarding lumbar lordosis and thoracic kyphosis.
  • Treat apices at or below T7.
  • Computer enhanced modification via CAD/CAM technology.
  • Each design is customized to patient’s shape and curve pattern.

Order Form Product Options Transfer Patterns

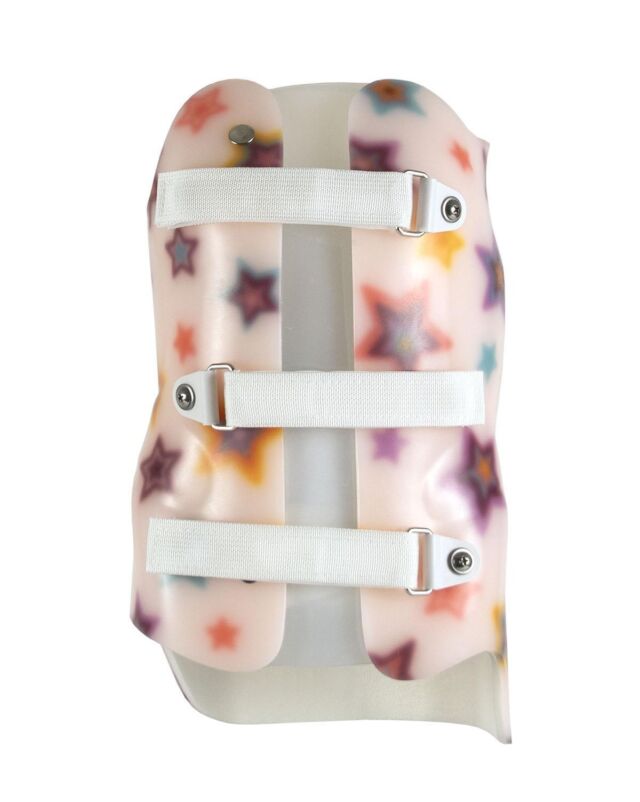

SCT 3D Wilmington (Style) Scoliosis Orthosis - Anterior View
SCT 3D Wilmington (Style) Scoliosis Orthosis - Anterior View

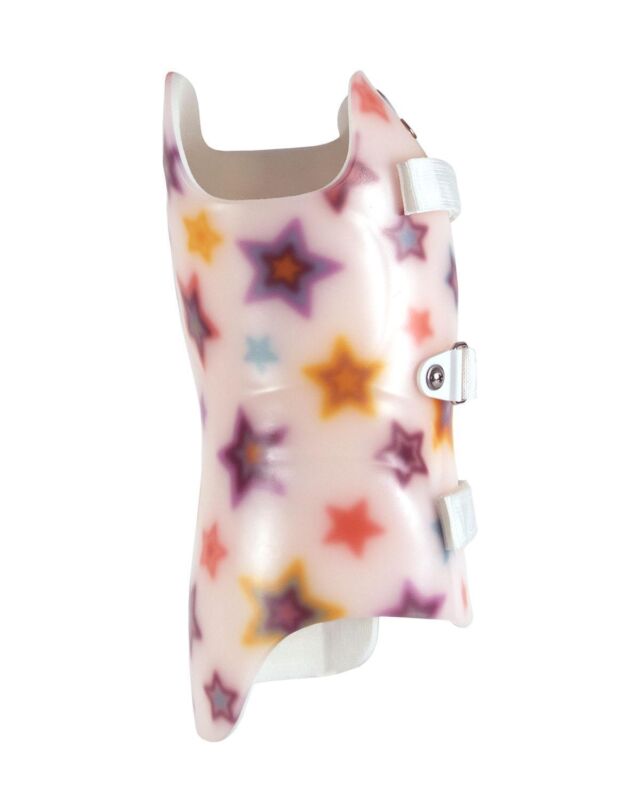

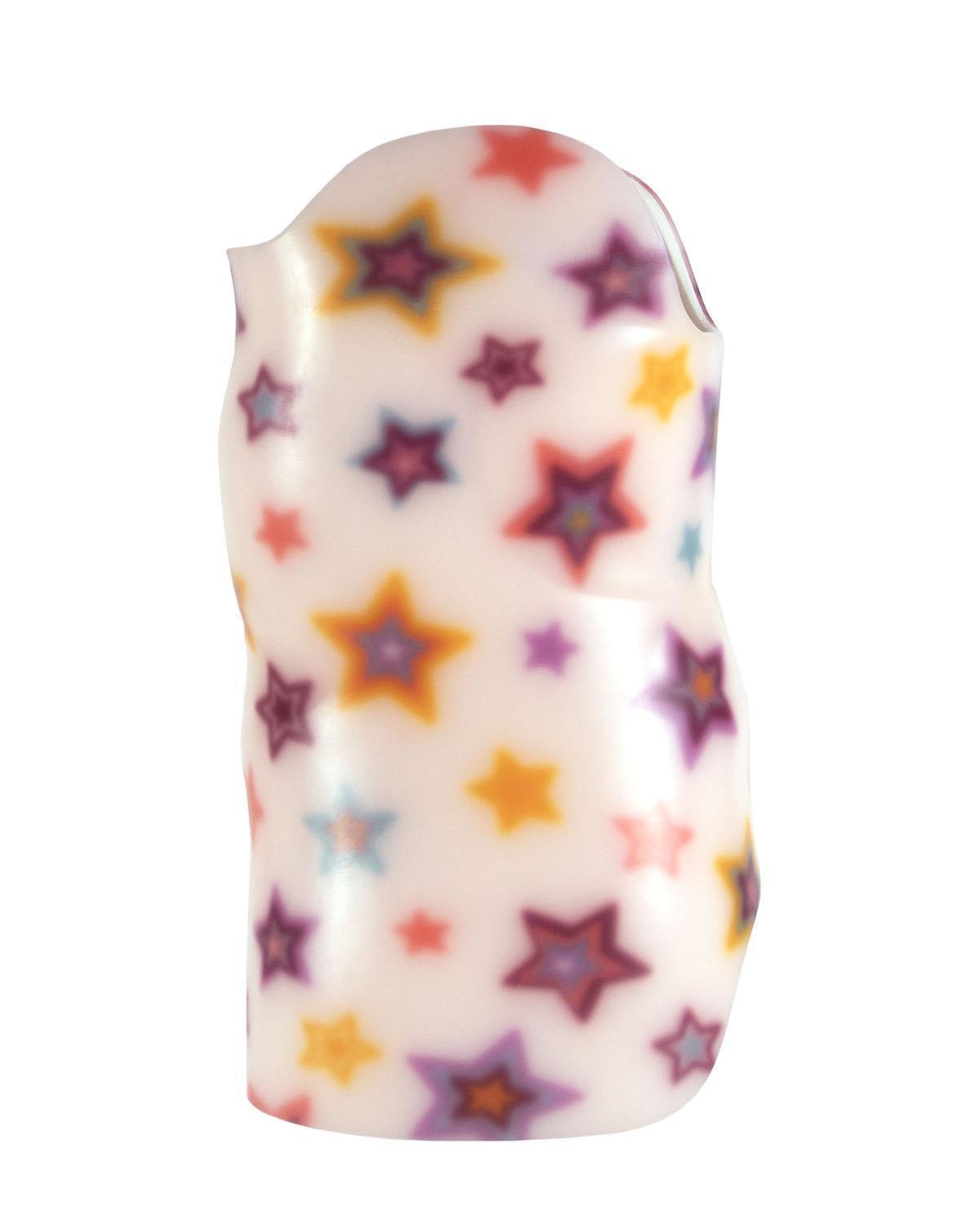

SCT 3D Wilmington (Style) Scoliosis Orthosis - Right Lateral View
SCT 3D Wilmington (Style) Scoliosis Orthosis - Right Lateral View
SCT 3D Wilmington (Style) Scoliosis Orthosis - Posterior View
SCT 3D Wilmington (Style) Scoliosis Orthosis - Posterior View

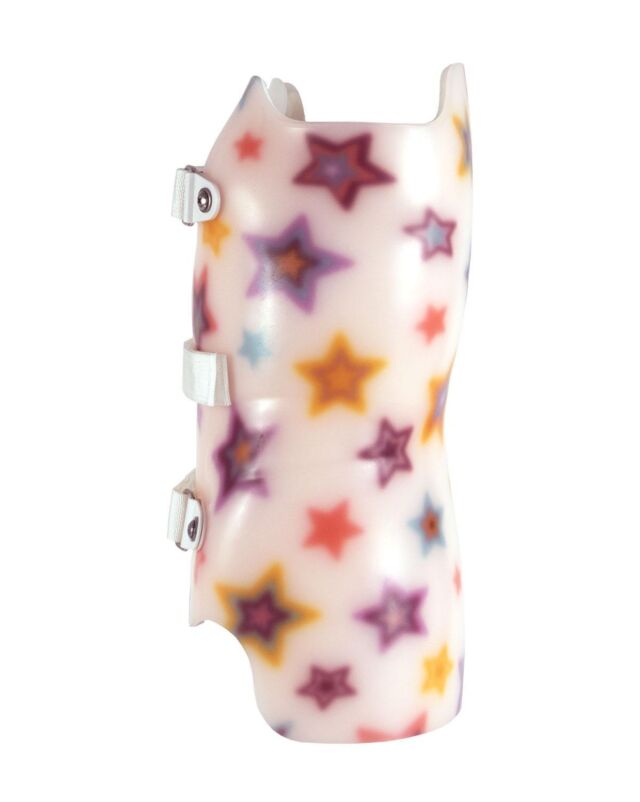

SCT 3D Wilmington (Style) Scoliosis Orthosis - Left Lateral View
SCT 3D Wilmington (Style) Scoliosis Orthosis - Left Lateral View
SCT 3D Wilmington (Style) Orthosis - 1
Wilmington X-Ray Set 1 Out of Brace
Original
Wilmington X-Ray Set 1 In-Brace
In-Brace
SCT 3D Wilmington (Style) Orthosis - 2
Wilmington X-Ray Set 2 Out of Brace
Original
Wilmington X-Ray Set 2 In-Brace
In-Brace
SCT 3D Wilmington (Style) Orthosis - 3
Wilmington X-Ray Set 3 Out of Brace
Original
Wilmington X-Ray Set 3 In-Brace
In-Brace
SCT 3D Wilmington (Style) Orthosis - 4
Wilmington X-Ray Set 4 Out of Brace
Original
Wilmington X-Ray Set 4 In-Brace
In-Brace
SCT 3D Wilmington (Style) Orthosis - 5
Wilmington X-Ray Set 5 Out of Brace
Original
Wilmington X-Ray Set 5 In-Brace
In-Brace
SCT 3D Wilmington (Style) Orthosis - 6
Wilmington X-Ray Set 6 Out of Brace
Original
Wilmington X-Ray Set 6 In-Brace
In-Brace
